18-Inch 18 AWG xConnect Male & Female Pigtail Pair
$2.50
Skip to product information
18-Inch 18 AWG xConnect Male & Female Pigtail Pair
$2.50
Product SKU:
BHL-PIGTAIL-EXT-1
These xConnect pigtails provide one male and one female connector with 18-inch, 18 AWG three-wire leads for permanent LED repairs, controller connections, extensions, transitions, and power-injection projects.
18 AWG xConnect pigtails for permanent LED wiring
- Controller connections Add a serviceable xConnect lead between compatible controller wiring and the lighting run.
- Repairs and transitions Replace a damaged lead or create a removable connection at a custom transition.
- Extension connections Connect field wiring to compatible xConnect extension cables.
- Power injection Build planned low-voltage connections near a compatible Power Injection T.

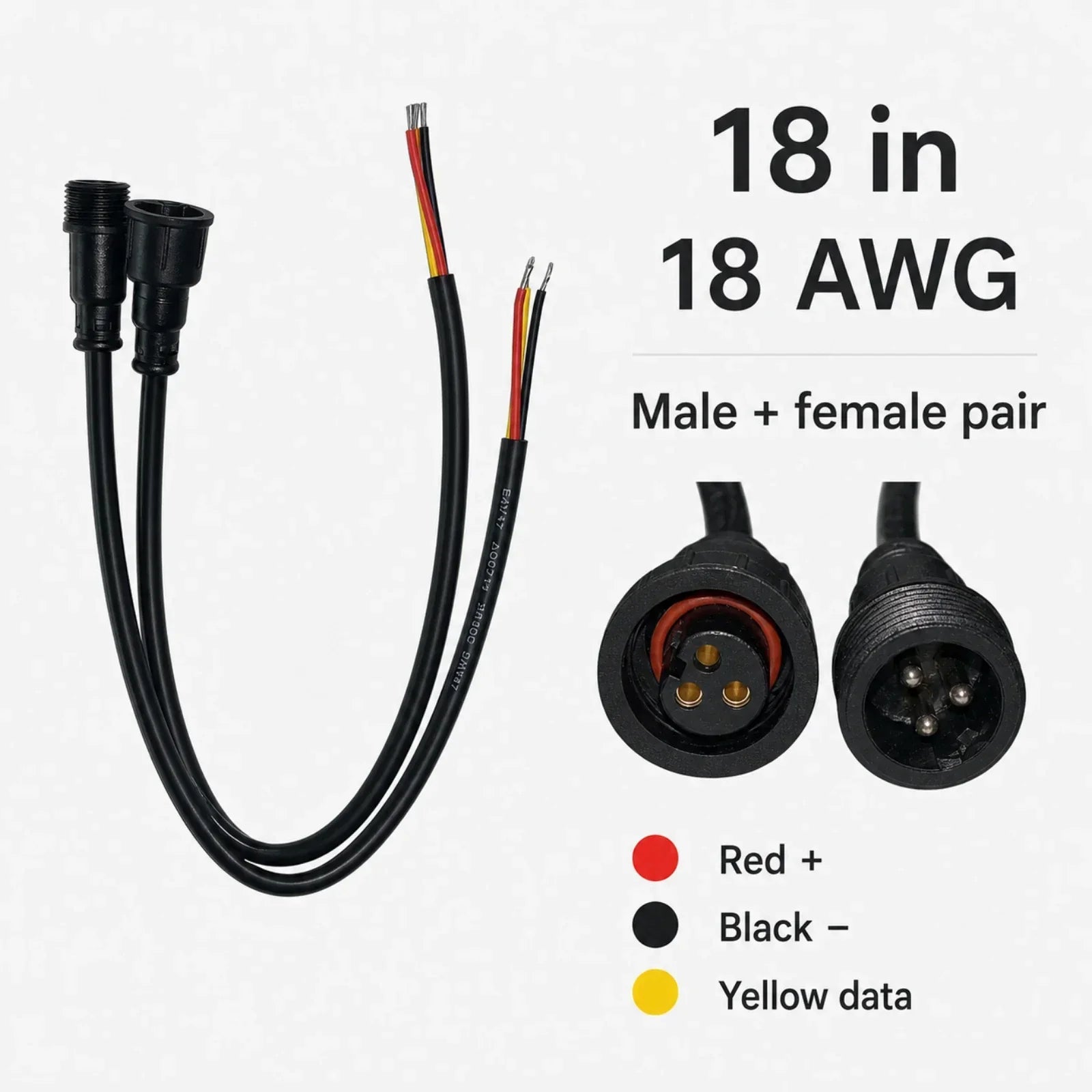

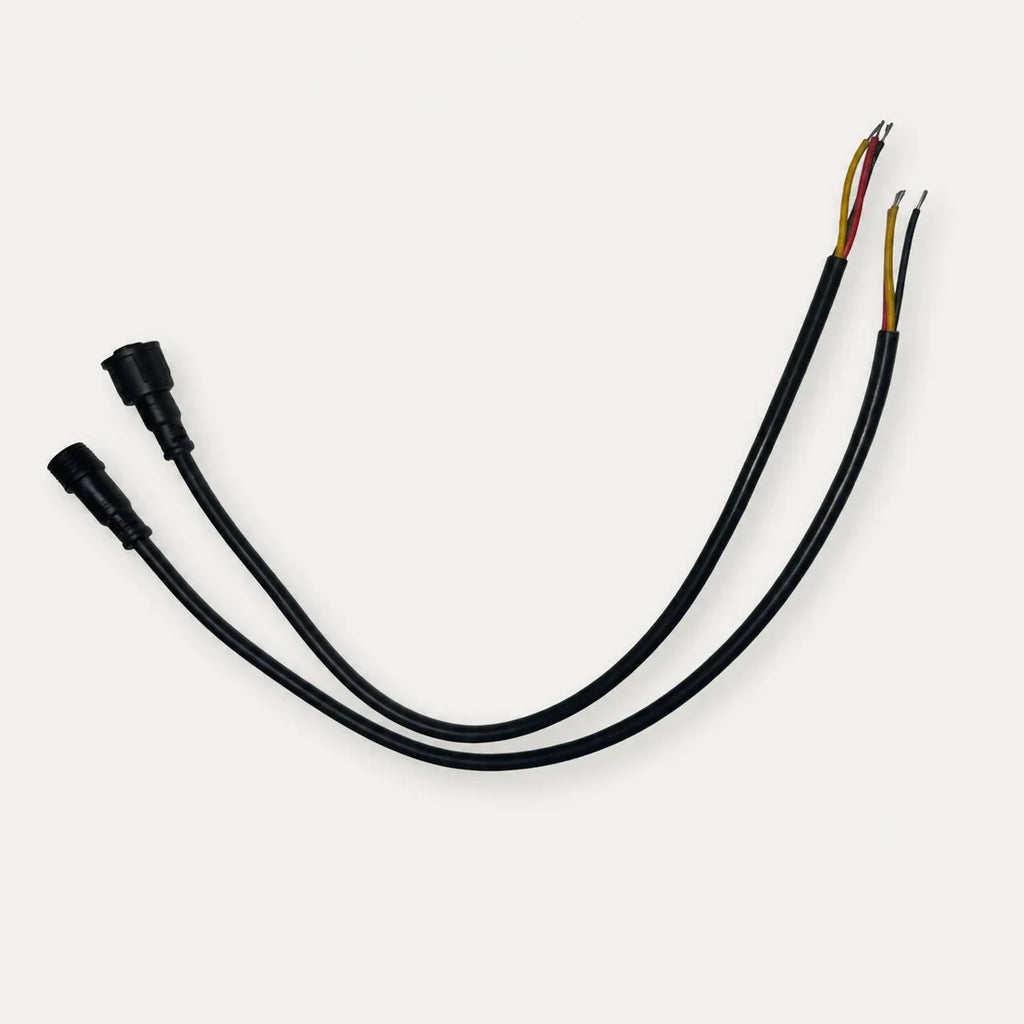

Male and female LED pigtail pair
| Pack contents | One male pigtail and one female pigtail |
|---|---|
| Lead length | 18 inches each |
| Wire gauge | 18 AWG |
| Conductors | Three |
| Connector style | xConnect male and female |
| Wire colors | Red = positive, black = negative, yellow = data |
No connector-diameter or separate waterproof rating is published on this listing. Protect splices and exposed wire according to the installation environment.
Identify the male and female xConnect ends
The pair includes both connector orientations so a custom lead can mate with a compatible xConnect connection. Confirm which end is required before cutting or terminating any field wire.
Do not rely on connector shape or wire color alone when mixing products. Disconnect power, trace positive, negative, and data through the complete system, and verify the pinout with the connected component documentation before energizing the circuit.
Connecting an xConnect pigtail
- Disconnect the system from power.
- Choose the male or female pigtail required for the connection direction.
- Verify the system pinout and identify positive, negative, and data conductors.
- Join red to positive, black to negative, and yellow to data only after confirming the complete system follows that color guide.
- Use connectors and an enclosure suitable for the wire, electrical load, and environment.
- Perform continuity and polarity checks before reconnecting power.
Complete your xConnect wiring
Use the pair with xConnect extension cables, a Power Injection T, an LED Data Booster, xConnect waterproof end caps, or the BHL WLED controller.
xConnect pigtail questions
What comes in the pair?
One male xConnect pigtail and one female xConnect pigtail are included.
How long and what gauge are the leads?
Each pigtail has an 18-inch, 18 AWG three-wire lead.
What do the wire colors mean?
The BHL guide is red for positive, black for negative, and yellow for data. Always verify the full-system pinout before applying power.
Can these be used for repairs and power injection?
Yes. Common uses include repair leads, controller connections, extension transitions, and planned power-injection connections.
